How Does Scrap Metal Shredding and Crushing Line Work?

How does a scrap metal shredding and crushing line actually work? we break the entire process into four steps, and show you why our machine run longer, sharper and greener than any other on the Chinese market.

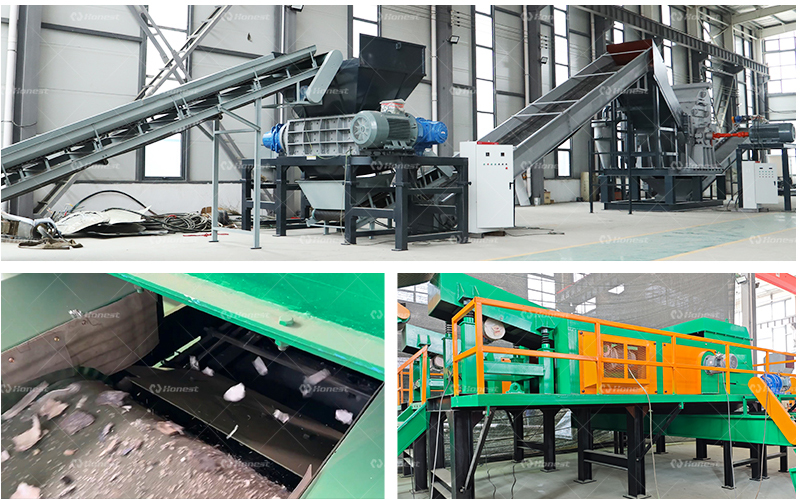

1. In-feed & Pre-conditioning :Our scrap metal shredding line always starts with automatically adjusts speed through a PLC + frequency-convertor combo, guaranteeing a choke-free supply to the double-shaft metal shredder.

2. Twin-shaft Shredding :According the shredding crushing action that downsizes white goods, car shells and I-beams into 80–120 mm strips in a single pass. A built-in automatic reverse & torque boost function prevents jamming when unshreddable items sneak in. Because the chamber is lined with replaceable 16 Mn wear plates, our metal shredder machine enjoys 30 % longer service life and qualifies as genuine heavy-duty scrap metal recycling equipment.

3. Hammer Crushing :The shredded strips fall directly onto a 1200 mm-wide magnetic discharge belt that removes free iron, then enter the hammer mill crusher.

4.three-stage separation:After crushing, the mixed fraction travels through a three-stage separation:Magnetic head-pulley pulls out clean ferrous.Eddy-current separator ejects aluminum, copper and zinc with a 96 % efficiency.Near-infra-red optical sorter removes remaining plastics, wood and foam.

If you need a scrap metal shredding and crushing line that is easy to rank for profitability, low on operating cost, and high on purity, talk to our company
