Scrap metal shredder consists of motors, gearboxes, feed hopper, shredder blades, shafts, lower racks, control box, etc. The number of the blades or their width respectively determines the size of the output material.
Scrap metal shredder consists of motors, gearboxes, feed hopper, shredder blades, shafts, lower racks, control box, etc. The number of the blades or their width respectively determines the size of the output material.

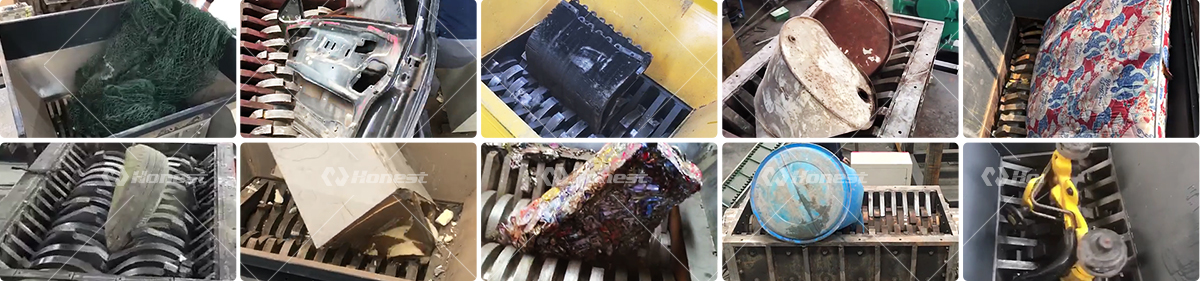

Scrap metal shredder is widely used in various kinds of scrap metals, such as aluminum can bundle, steel drum, car shell, color steel tile, copper aluminum radiator, bicycle, steel wire rope, car engine, scrap cable wire, aluminum plastic panel, aluminum alloy, metal barrels, etc.
Scrap metal shredder Features:
1) Scrap metal shredder can be customized according to user's requirements;
2) Scrap metal shredder has a low speed, high torque, low noise, compact design;
3) Scrap metal shredder with a special material, long life, high utilization rate; knives can be exchanged easily and quickly;
4) In case the scrap metal shredder is overloaded or foreign objects are in the cutting unit, the rotor stops and moves backward automatically to prevent overfeeding and protect against damage from foreign objects.
| Model |
| Motor Power |
| Rotation Speed |
| Capacity |
| Blade Quantity |
| Blade Diameter |
| Input Opening Size |
| Dimension L/W/H |
| Weight |
| HNDM1000 |
| 30*2 Kw |
| 18-20 r/min |
| 1-2T/H |
| 30 |
| Φ360 mm |
| 1200*1000 mm |
| 3000*2000*1900 mm |
| 5 T |
| HNDM1200 |
| 45*2 Kw |
| 18-20 r/min |
| 3-4T/H |
| 28 |
| Φ372 mm |
| 1400*1000 mm |
| 3200*2000*1900 mm |
| 6 T |
| HNDM1500 |
| 55*2 Kw |
| 14-16 r/min |
| 4-5T/H |
| 30 |
| Φ530 mm |
| 2000*2000 mm |
| 4000*1700*2400 mm |
| 12 T |
| HNDM1900 |
| 90*2 Kw |
| 14-16 r/min |
| 8-10T/H |
| 40 |
| Φ560 mm |
| 2300*2000 mm |
| 8000*2500*2400 mm |
| 15 T |
| HNDM2600 |
| 160*2 Kw |
| 16-18 r/min |
| 13-15T/H |
| 40 |
| Φ720 mm |
| 2425*1400 mm |
| 8200*4000*4300 mm |
| 36 T |
