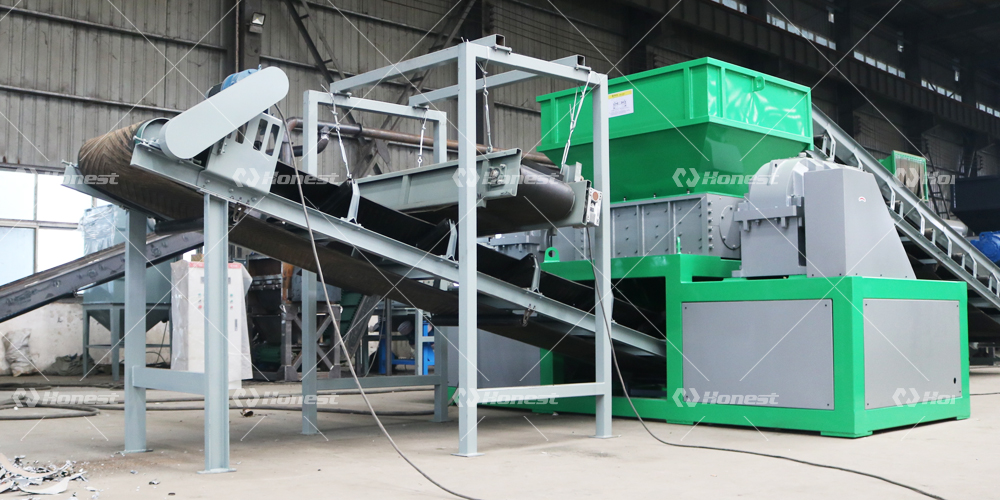

Plastic shredder consists of motors, gearboxes, feed hopper, shredder blades, shafts, lower racks, control box, etc. The number of the blades or their width respectively determines the size of the output material.
Plastic shredder is widely used in crushing various kinds of plastic scraps, such as plastic drum, pvc pipe, plastic film, plastic toys, plastic barrel, aluminum plastic films, plastic tray, plastic plastic pallet, ABS die materials, plastic lumps, refrigerator, washing machine, television, air conditioner and other household appliances, etc.
Scrap plastic shredder Characteristics:
1). Plastic shredder is easy to operate and easy to maintain;
2). Plastic shredder has a low speed, high torque, low noise, compact design;
3). Plastic shredder with a special material, long life, high utilization rate; knives can be exchanged easily and quickly;
4). In case the scrap metal shredder is overloaded or foreign objects are in the cutting unit, the rotor stops and moves backward automatically to prevent overfeeding and protect against damage from foreign objects.
| Model |
| Motor Power |
| Capacity |
| Blade Quantity |
| Blade Diameter |
| Input Opening Size |
| Dimension L/W/H |
| HNDP600 |
| 11*2 Kw |
| 500-600 Kg/H |
| 30 |
| Φ210×20 mm |
| 950*700 mm |
| 1800*850*1850 mm |
| HNDP800 |
| 18.5*2 Kw |
| 800-1000 Kg/H |
| 26 |
| Φ210×30 mm |
| 1200*800 mm |
| 2800*900*2050 mm |
| HNDP1000 |
| 22*2 Kw |
| 1200-1500 Kg/H |
| 50 |
| Φ300×20 mm |
| 1200*950 mm |
| 3400*1500*2200 mm |
| HNDP1200 |
| 30*2 kw |
| 1500-1800 Kg/H |
| 40 |
| Φ300×30 mm |
| 1500*1000 mm |
| 3800*1600*2600 mm |
| HNDP1500 |
| 45*2 Kw |
| 3000-4500 Kg/H |
| 36 |
| Φ400×40 mm |
| 1500*2000 mm |
| 4600*1700*2600 mm |
