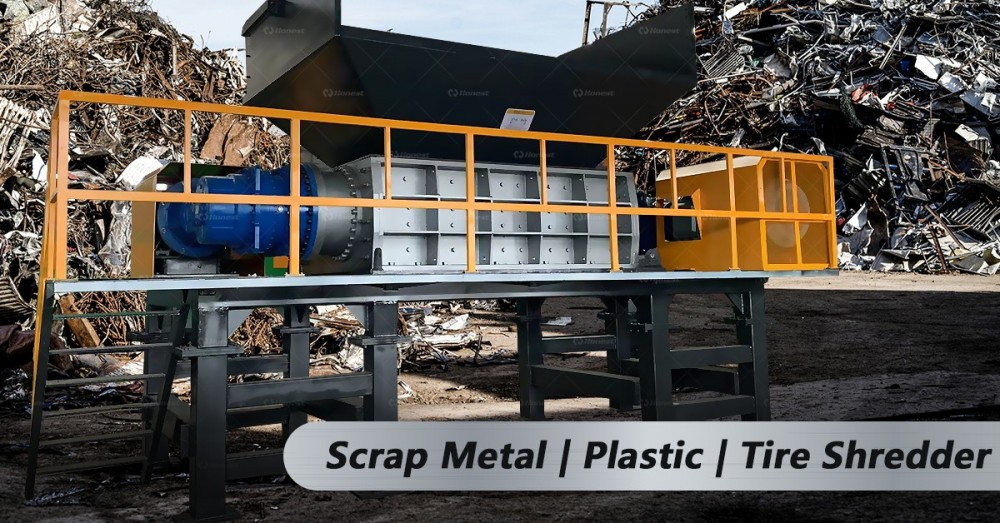

Powerful Double Shaft Shredder

Metal scrap does not always arrive in a convenient form. Recycling companies may receive long aluminum profiles, discarded metal structures, sheet scrap, old equipment housings, and mixed pieces that are difficult to feed into conventional size-reduction equipment. When oversized materials become a bottleneck, a powerful double shaft shredder can provide a practical solution for preparing scrap for the next stage of recycling.

Handling Irregular Metal Feedstock

The biggest challenge with bulky scrap is often not its hardness, but its shape. Long and wide pieces can bridge across the feed opening, while thin sheets may overlap and become difficult to move through a processing line. Mixed loads can create an even greater challenge because the machine has to deal with different dimensions and material characteristics at the same time.

A double shaft design addresses this problem through a pulling and shearing action. Two shafts rotate toward each other and continuously draw the incoming material into the cutting chamber. The cutters engage with the scrap and gradually reduce its dimensions instead of depending entirely on impact.

This makes the equipment particularly useful when the incoming material is too large or irregular for downstream crushers, separators, or sorting systems.

Why Torque Matters in Metal Scrap Shredding

When selecting a metal scrap shredder, motor power is important, but torque and cutter configuration are equally significant. Many metal recycling applications require the machine to start and continue processing material that has considerable resistance.

A low-speed, high-torque drive allows the cutters to maintain force while processing bulky feedstock. The machine can pull, tear, and shear material through the chamber at a controlled speed.

The exact configuration should depend on the type of scrap being processed. Aluminum profiles, light steel scrap, mixed metal waste, and heavier components can have very different processing requirements. Choosing the equipment based on actual material characteristics is therefore more reliable than selecting a machine solely by its motor rating.

From Scrap to a More Manageable Feedstock

The purpose of primary shredding is generally to make large materials easier to handle. After passing through the shredder, oversized metal pieces become smaller sections that can be conveyed and sorted more efficiently.

For example, aluminum window frames may enter the machine as long profiles. Following size reduction, the resulting pieces can be transported to a sorting stage where ferrous attachments and non-ferrous materials are separated.

A similar approach can be used for other scrap streams. Magnetic separation may remove iron and steel, while eddy current separation can be incorporated when non-ferrous metals need to be recovered from a mixed stream.

The shredder therefore functions as an important preparation stage rather than necessarily being the final piece of equipment in the recycling process.

Designing the Machine Around the Material

A strong shredder is not automatically the right shredder for every application. Feed size, material thickness, moisture, contamination, expected throughput, and required discharge size all influence the final equipment configuration.

For recycling companies handling a changing supply of scrap, versatility can also be important. A machine that can accommodate several suitable material streams may provide greater operational value than equipment designed around only one narrow application.

The feed hopper and opening should also be considered. If the operator needs to process long profiles or bulky assemblies, an undersized feeding system can reduce the practical capacity of the entire line, even when the drive system itself has sufficient power.

Where a Double Shaft Shredder Fits in a Recycling Plant

A powerful double shaft shredder is commonly positioned near the beginning of a recycling process. Its role is to reduce oversized material and create a more manageable feedstock for separation and further processing. typical system may include a feeding conveyor, double shaft shredder, discharge conveyor, magnetic separator, screening equipment, and additional separation machinery. The actual configuration depends on the composition and quality of the incoming scrap.For some applications, a single shredding stage may be enough. Other materials may require secondary crushing or more precise separation after primary size reduction.This modular approach allows the recycling line to be designed around the customer's material rather than forcing every project into the same equipment arrangement.
