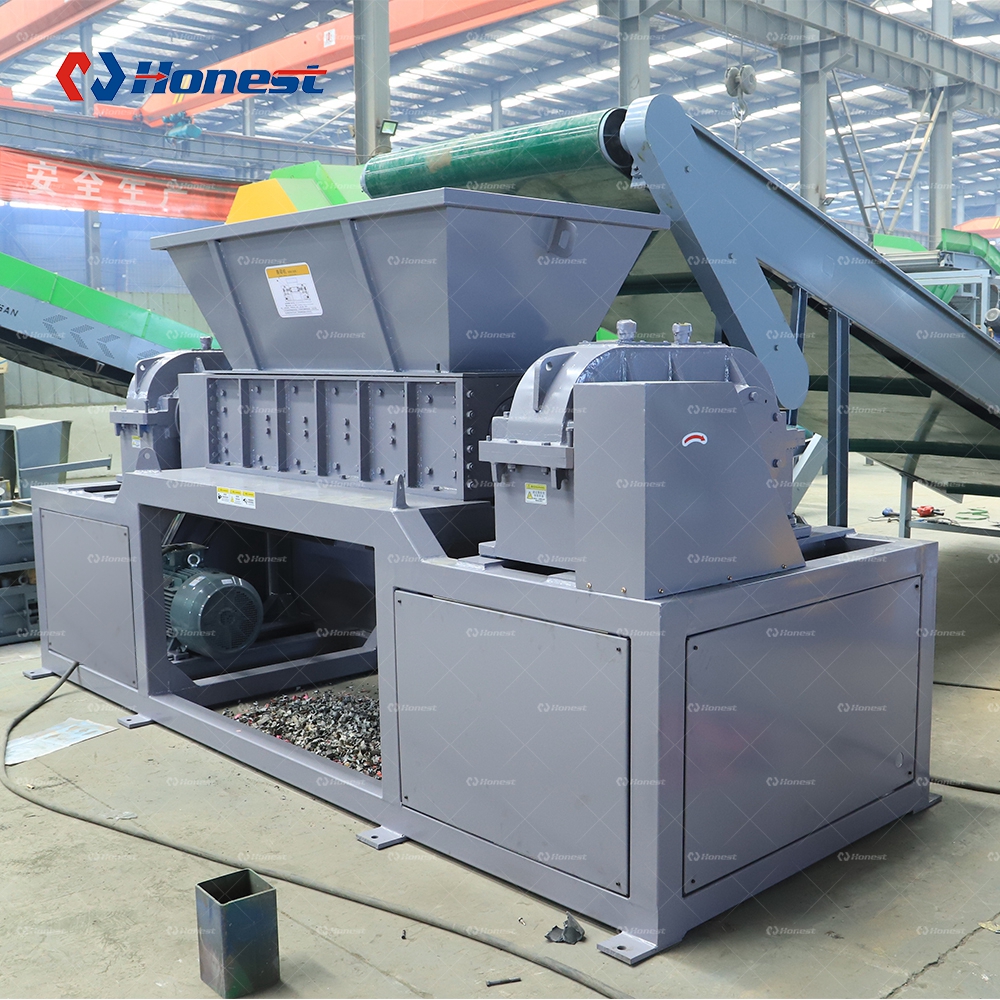

Technological Development of The Dual-Shaft Shredders

Industrial scrap metal dual-shaft shredders employ a low-speed, high-torque operating mode; the rotational speed of the dual shafts typically ranges from 20 to 40 RPM—significantly lower than the 600 to 1200 RPM found in hammer crushers. This design is grounded in the theory of differential-speed shearing:

Master-Slave Shaft Configuration: The active shaft maintains a rotational speed differential of 1–2 RPM relative to the driven shaft, generating a tearing effect rather than mere compression.

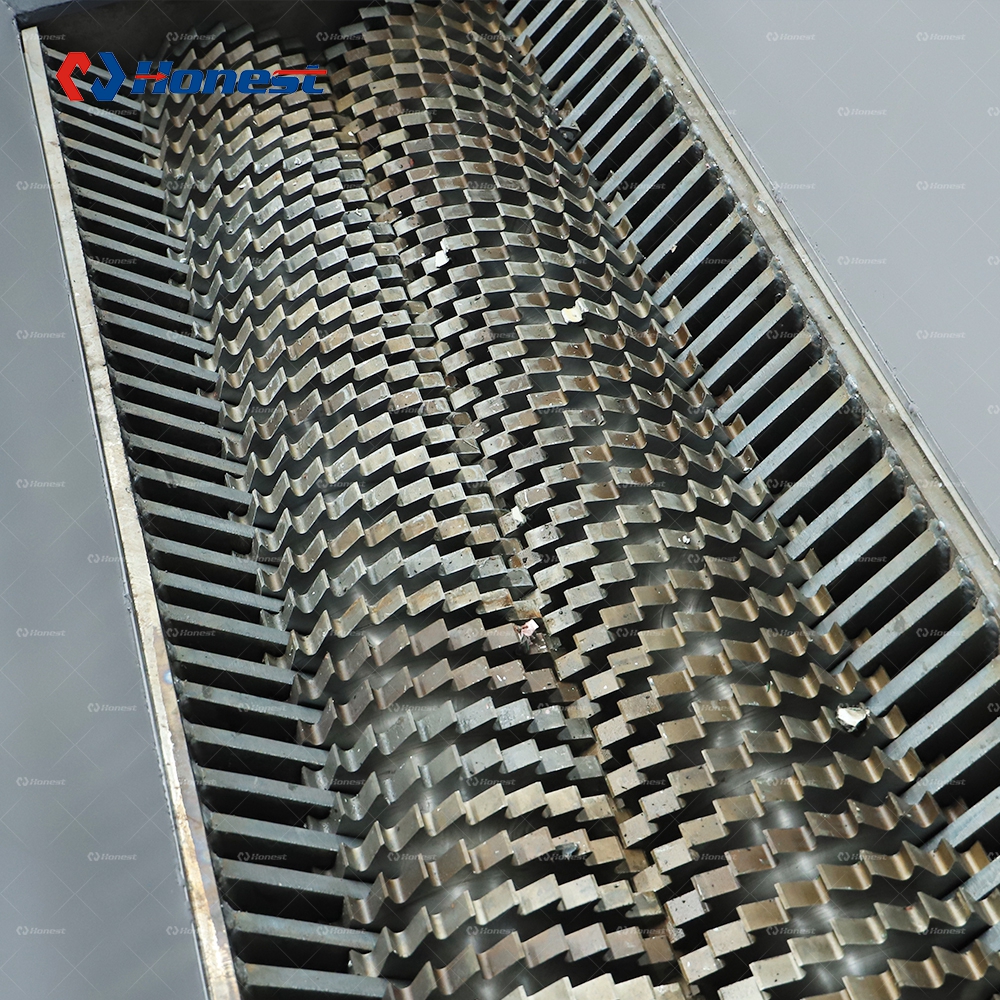

Optimized Bite Angle: The arrangement of the blades creates a "bite angle" (α) of 35° to 45°, ensuring that metal sheets are automatically drawn into the machine without the need for auxiliary pushing.

Shear Stress Distribution: Each cutting tooth is subjected to a localized stress (σ) of 400–600 MPa—far exceeding the yield strength of Q235 steel (235 MPa)—thereby achieving cold fracture of the material.

Different Types of Dual-Shaft Shredders

1. Hydraulic Drive Systems (Mainstream Configuration)

Automatic Torque Adaptation: A load-sensing system adjusts hydraulic displacement in real-time; upon encountering unshreddable objects, the system pressure rises to a preset threshold, triggering an automatic reversal of the shafts.

Impact Protection: Hydraulic accumulators absorb peak pressure spikes, thereby protecting the hydraulic components.

Energy Consumption Characteristics: Volumetric efficiency exceeds 92%, though the overall system efficiency (including mechanical losses) stands at approximately 65%.

2. Electric Direct-Drive Systems (Emerging Technology)

The combination of permanent magnet synchronous motors and planetary gear reducers has achieved a market penetration rate of 30% in small-to-medium-sized equipment:

Efficiency Advantages: Overall system efficiency reaches 85–90%, resulting in a 20–25% reduction in energy consumption.

Control Precision: Vector frequency converters enable rotational speed control with an accuracy of ±0.5%.

Limitations: The rigid nature of the transmission system makes it sensitive to impact loads; consequently, it requires the integration of torque-limiting couplings.

Technological Development Trends of The Dual-Shaft Shredders

Intelligent Operation: Current and vibration sensors facilitate predictive maintenance, achieving a fault pre-warning accuracy rate exceeding 85%.

Heavy-Duty Design: Single-shaft torque capabilities have surpassed 500,000 N·m, enabling the processing of entire engine blocks.

Modularity: The hydraulic station, electrical control cabinet, and shredding chamber can be rapidly decoupled, allowing for on-site installation in under 8 hours.
